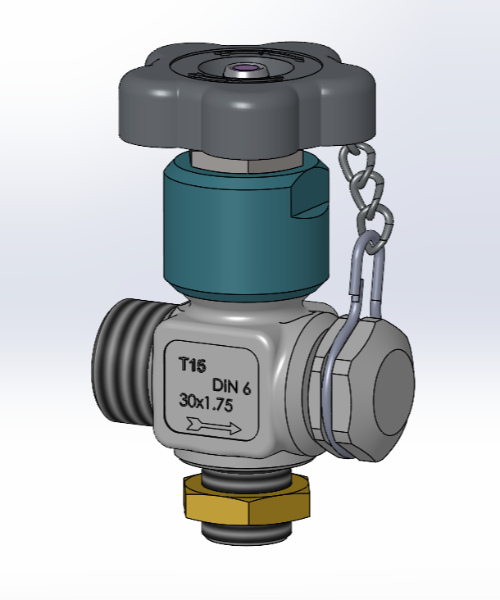

TYPE 15 pipeline valves are high-pressure packing valves suitable for all types of compressed, dissolved or mixed gases. They can be used for operating pressures up to 200 bar, with or without safety, in 316 stainless steel, for all inlet and outlet types to suit the application and the required national standard.
Type 15's design guarantees safe operation. The Type 15 damper remains in the closed position as long as the handwheel is not opened beyond a quarter-turn, ensuring even greater safety.
Last but not least, the benefit of having a packing valve lies in its ability to stop any leak simply by tightening the stuffing box, ensuring a simple and effective solution to the problem.
|
SPECIFICATIONS:
|
|
| Material: | Stainless steel 316 |
| Operating pressure: | Up to 200 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure: | No |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc | With or without rupture disk |
| Wheel: | 64 mm aluminum |
| Option: | Engraving of your logo or other |
ACCESSORIES :
