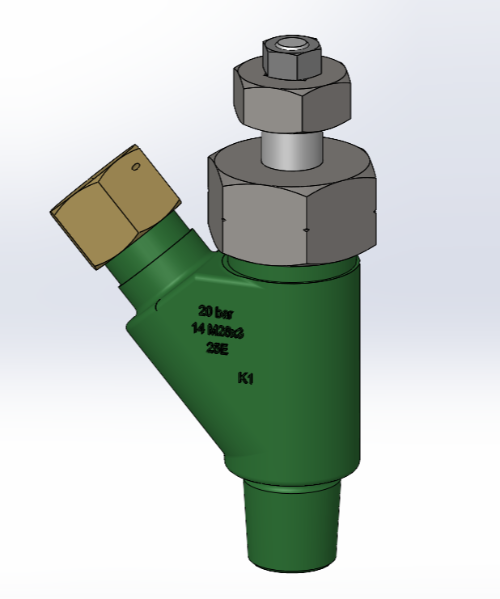

TYPE 14 "Y" chlorine tanks are trim valves for chlorine drums. They can be used for operating pressure up to 29 bar. They have a 25E inlet and a Ø25,4x3,175W. outlet.
The advantage of a packing valves lies in its ability to stop any leak simply by tightening the stuffing box, thus ensuring a simple and effective solution to the problem.
|
SPECIFICATIONS:
|
|
| Material: | Steel |
| Operating pressure: | Up to 29 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure | No |
| Operating temperature: | -20 °C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 9 mm |
| Safety device: | With ou without fuse socket |
| Wheel: | 32 mm hexagonal nut on flat surface |
| Finishes: | Green zinc-plated |
| Option | Engraving of your logo or other |
ACCESSORIES :
