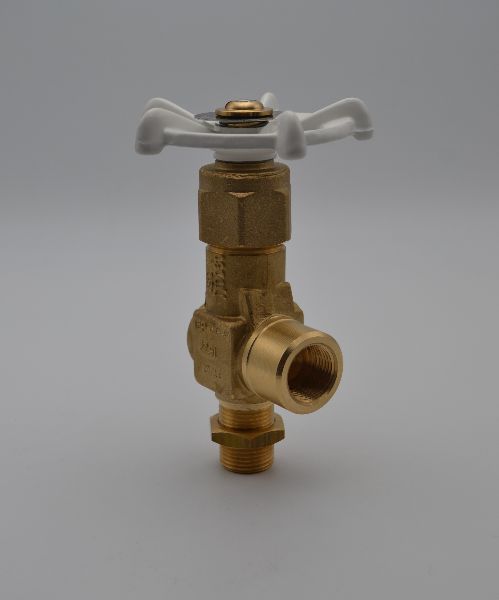

TYPE 5P frame valves are high-pressure, residual-pressure, O-ring-sealed valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 300 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
In view of their high flow rate, TYPE 5P valves are best suited to frame applications.
|
SPECIFICATIONS:
|
|
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| EN ISO 15996 | |
| Residual pressure | Yes |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 5 mm to 9 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 64 mm |
| 100 mm black aluminum | |
| 100 mm white aluminum | |
| Finishes | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
