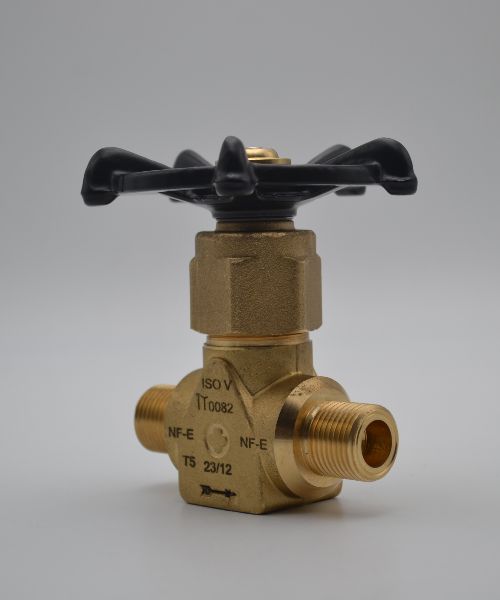

TYPE 5 frame valves are high-pressure O-ring valves suitable for all types of compressed and mixed gases, including oxygen. They can be used for operating pressues up to 300 bar, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
|
SPECIFICATIONS:
|
|
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure | No |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature | -40°C to +65°C |
| Flow diameter: | 9 mm |
| Breaking disc: | Without rupture disk |
| Wheel: | Brass, 64 mm |
| 100 mm black aluminum | |
| 100 mm white aluminum | |
| Finishes: | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
