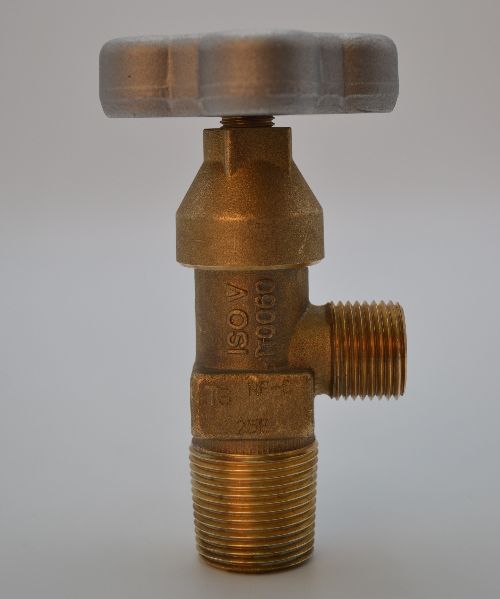

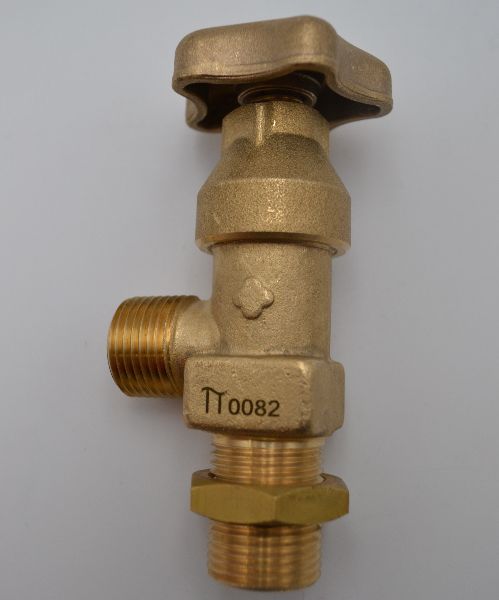

TYPE 8P cylinder valves are high-pressure, O-ring residual-pressure valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 250 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the requires national standard.
TYPE 8P valves are mainly intended for cylinders, thanks to their 4mm bore, but can also be used for frames.
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 250 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| EN ISO 15996 | |
| Residual pressure: | Yes |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 48 mm |
| 48 mm white brass | |
| 48 mm nickel-plated brass | |
| 64 mm aluminum | |
| Finishes: | Brass or nickel-plated |
| Option: | Engraving of your logo or other |
ACCESSORIES :
