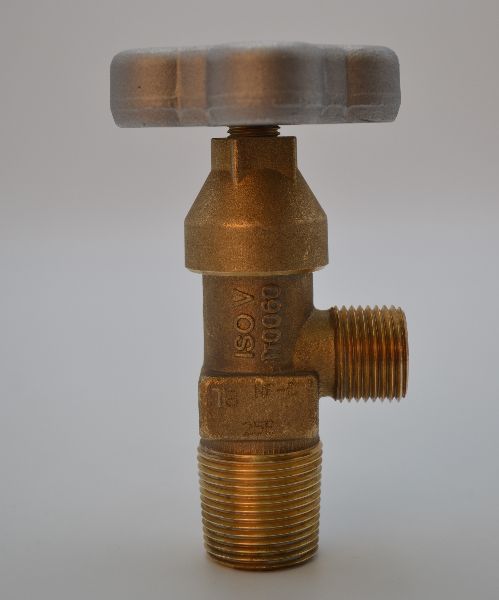

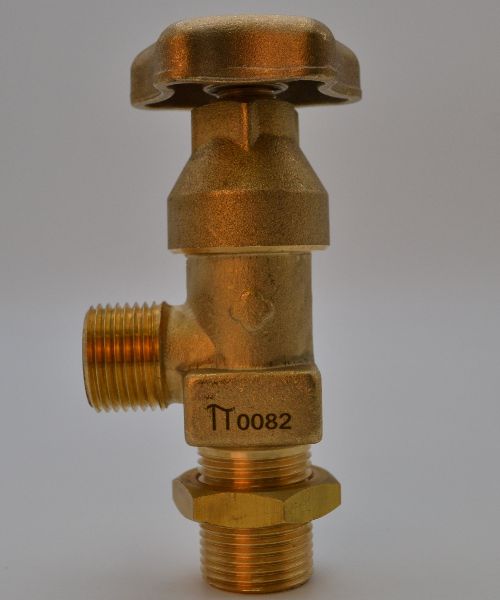

TYPE 8 valves are high-pressure O-ring valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 300 bar, with ou without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure | No |
| Operating temperature | -20°C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 48mm |
| 48 mm white brass | |
| 48 mm nickel-plated brass | |
| 64 mm aluminum | |
| Finishes: | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
