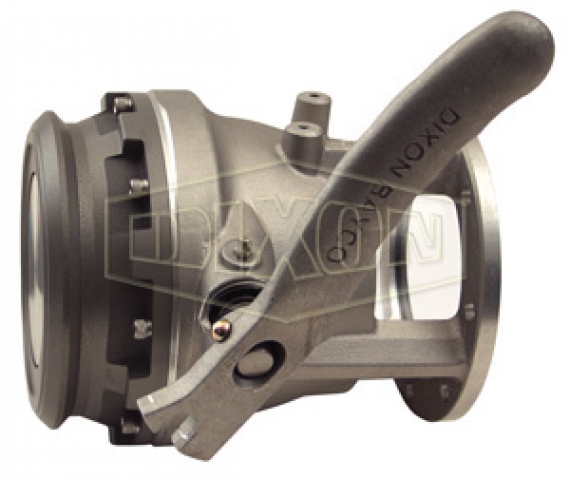

API Load/Unload Valve
5204SFI-P
Attributes
Weight:12.52 lb
Optional Package/Box Quantity:1
Material:Aluminum
Style:Fixed handle, inline full body sight glass, drilled/tapped boss
Seal:Baylast™
Fuel Compatability:Gasoline and diesel, and up to E100 and B100 biofuels
Length:8.81"
Details
Applications
Used for bottom loading and unloading of petroleum tankers, Load/unload valve permits both terminal loading, and fuel unloading through the valve.
Construction
Aluminum body with anodized hard coat aluminum nose ring and stainless steel hardware
Fixed aluminum handle
Inline Acrylic full body sight glass
Baylast™ seals
Features
Unique fluid flow sight level
Ergonomically curved handle operates on a short 62° degree stroke
Any required maintenance is simplified, Dixon Bayco API Valves can be completely rebuilt without the need to remove the valve from the tanker
Nose ring is anodized hard coat aluminum, which in most applications will provide years of trouble free service. Nose ring can be rotated to provide a fresh connection service.
Safety Notes
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications
Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to drop adapters and rack couplers such as the Dixon Bayco 5300/5400 series rack coupler.
