DIXON DBS63-200

发表时间：2021-12-24 来源：点击次数：1555次

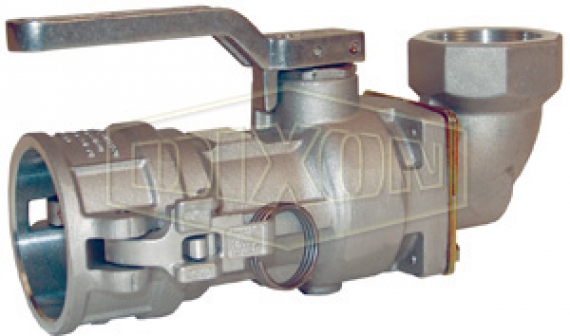

Bayloc® Dry Disconnect Coupler x 90° Swivel Female NPT
DBS63-200

Attributes
Maximum Operating Pressure:150 PSI at 70°F(21°C)
Weight:7.36 lb
Optional Package/Box Quantity:1
Material:Aluminum
Seal:PTFE Encapsulated Silicone & FFKM
Female Thread:NPT
Coupler Size:2-1/2"
Female Thread Size:2"

Details
Applications
Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

Compatibility & Interchange Data
Compatible with most other brands of cam and groove style dry disconnects
Fully interchangeable with Kamvalok (OPW trademark) style fittings

Construction
Stainless steel internals
Heavy duty stainless steel handle, crank and link

Description
Cam & Groove Style

Features
Coupler has automatic closing poppet assembly
Heavy duty construction provides long service life
Stainless steel handle allows product exposure to corrosive chemicals or washdown service
Strong handle attachment prevents bending of crank assembly
Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.

Note
Contact Dixon™ at 800-355-1991 for chemical compatibility, size, material selection and special configurations.

Safety Notes

Must be used with a DBA (Dry Break Cam & Groove) Style adapter for coupler to operate. Adapter sold separately.
For pressure ratings at other temperatures, contact Dixon™.
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications
Canadian registration number CRN # OH14044 all provinces

Use
Use with DBA style adapters
Use with standard cam and groove dust plug sized one size larger than the dry disconnect size

Use Cam & Groove Dust Plug Size: 2-1/2"
