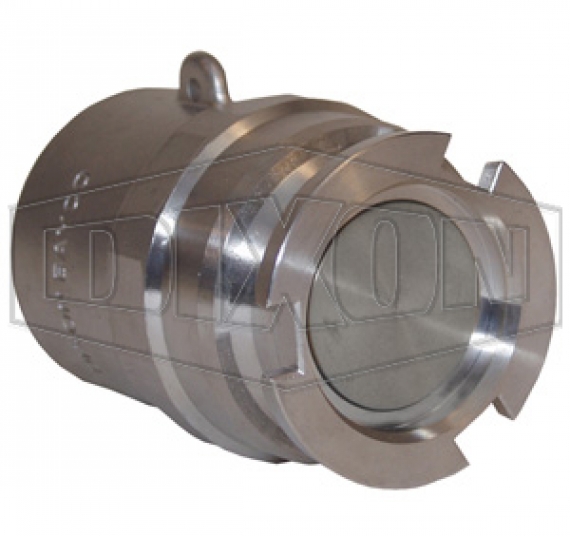

Bayonet Style Dry Disconnect Adapter x Female NPT
BA61-300
Attributes
Maximum Operating Pressure:85 PSI at 70°F (21°C)
Weight:2.6 lb
Optional Package/Box Quantity:1
Size:3"
Material:Aluminum
Seal:Buna
Details
Applications
Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data
Interchangeable with the Emco Wheaton™ Dry Break™
Construction
Anodized aluminum poppet valve
Features
Helps eliminate the possibility of costly spills
Note
Rubber dust caps with stainless steel chains are available to protect the adapter from contamination and damage.
Safety Notes
For pressure ratings at other temperatures contact Dixon®.
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications
Canadian registration number CRN# OH14055 all provinces
