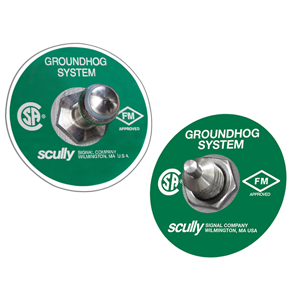

Vehicle-Mounted Static Grounding Devices

• Part of the original patented Scully Groundhog static ground verification system
• “Smart” circuitry verifies proper connection is made before loading can begin; if the ground connection is broken during loading operation, the operation ceases
• With the Scully Ground Bolt, only one connection is needed for overfill prevention and ground verification when using ST-47 Groundhog and Scully Overfill Prevention Control System
• Special “smart” Ground Ball is used for independent ground verification where Scully overfill prevention system is not in use

FEATURES

Ground Bolt

For static grounding connected through a Scully Overfill Prevention Control System

• Ground Bolt is mounted directly to the vehicle frame and wired to the existing truck-mounted Scully Socket(s)
• Only one connection is needed for overfill prevention and ground verification when Using ST-47 Groundhog and Scully Overfill Prevention Control System
• Contains “smart” electronic circuitry that offers an intelligent return signal to the Groundhog^™ Control Monitor

Ground Ball

For independent grounding where no Scully overfill prevention system is in use

• Special quick-release plug and cable assembly plugs onto the ball, grounding the connection
• Contains “smart” electronic circuitry that offers an intelligent return signal to the Groundhog^™ Control Monitor
• For situations where no Scully ground ball is present, Scully offers a grounding clamp tied to the Groundhog Control Monitor at the loading terminal

GROUND BOLT

GROUND BALL

Groundball Groundbolt FM
Groundball Groundbolt BE ATEX
Groundball Groundbolt UK ATEX
Groundball Groundbolt BE ATEX German
