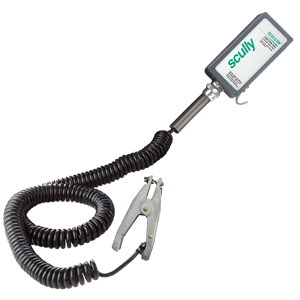

SCULLY Ground Proving Clamp and Cable with Sculcon

发表时间：2021-09-04 来源：点击次数：1522次

For use with Sculcon Junction Box, Model SC-47CC/CLMP

FEATURES

Verification of static grounding when properly connected to the trailer frame

Intrinsically safe operation

Spring-loaded clamp jaws with adjustable contact pins for a solid bond to the trailer frame

Heavy-duty, weather-sealed aluminum junction box to house cable wiring

The clamp and cable disconnects from the junction box during a drive-away accident, preventing damage to the control monitor and maintaining intrinsic safety

ORDERING INFO

Junction Box with Ground Cable and Plug or Clamp

Part Number	Description
08815	SC-47CC/CLMP Clamp and 32′ Coiled Cable
09333	SC-47/CLMP Sculcon Junction Box, Clamp, and 20′ Straight Cable

REPLACEMENT PARTS

Part Number	Description
27647	Terminal Strip, 12-position
32445	Strain Relief, 3⁄8″, for Grounding Cable
31766	Clamp and Cable Assembly, 32′ Coiled Cable
32665	Clamp and Cable Assembly, 20′ Straight Cable
31778	Replacement Clamp
32319	Sculcon Box Assy, general purpose

TECH SPECS

Some applications such as rail lines and pipelines may also have stray currents present. In these situations, the rail or pipeline must be bonded to ground independently from the Scully ST-47 system.

Operation Temperature:	-40˚ to +140˚ F (-40˚ to +60˚ C)
Electrical Connections:	Internal terminal strips, identified for easy installation
Bypass Switch:	Key lockable off-on bypass switch for ELK model only
Power Requirements:	ST-47–115 Models: 105–125 VAC, 50/60 Hz. 0.250 Amperes maximum ST47–240 Models: 208–240 VAC, 50/60 Hz.0.125 Amperes maximum
Shipping Weights:	SC-47; 9 lbs (4 kgs)
Approvals:	Explosion-proof with intrinsically safe ground connection outputs; rated for Class I, Division 1, Groups C & D Hazardous (Classified) Locations, by FM Global (FM) to Canadian and United States standards
