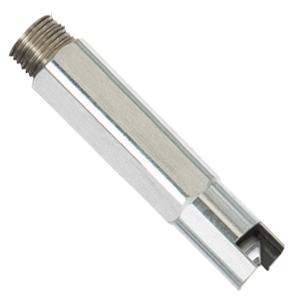

SCULLY Two-Wire Optic Sensor

发表时间：2021-08-21 来源：点击次数：1585次

Maximum safety with Dynacheck–automatic and continuous Self-Checking® circuitry when used with Scully monitoring systems
Field-proven, optic level-sensing technology with NPT mounting threads
SP-IO models are designed for use with Scully ST-15WX Control Monitors
Typical uses include storage tanks, double-containment piping trenches, and double-wall storage tank interstitial space monitoring
Years of dependable, virtually maintenance-free operation
Sensors can be easily extended to desired length at installation site using a 3/8” x 3/8” coupler and the required length of 3/8” NPT pipe

FEATURES

Reliable components with no moving parts
Functions within a wide range of temperatures and in a variety of liquid products
Sensors can be extended using a 38” x 3/8” coupler and the required length 3/8” NPT pipe.
Intrinsic safety approvals SIL 2 Capable with Scully ST-15WX System.

ORDERING INFO

The ordering information below is for FM and FMC approved units. For International ATEX and SIL approved models, see:
Storage Tank Sensors ATEX

Two-Wire Optic Sensors

Part Number	Description
08884	SP-IO Style Sensors

TECH SPECS

Temperature Range:	Standard; 0º to +140ºF (-18º to +60ºC) Low; -40º to +122ºF (-40º to +50ºC) High; 0º to +200ºF (-18º to +93ºC)
Product Range:	Gasoline through #6 oil, and most low viscosity petro-chemical liquids
Level Responsibility:	+/- 1⁄16″ (1.6mm)
Size:	Refer to diagrams
Response Time:	0.5 second maximum, refer to the controller specifications
Exposed Materials:	—
Sensors:	Aluminum body, Boroscilicate glass sensing element
Electrical Connections:	Optic sensors have two 5’ leads.
Compatible Rack Controls:	Scully ST-15 Series and other stationary thermistor control units. Consult technical data sheets #67036, #60629, #60633

PROD LIT/DOWNLOADS

Datasheets:

Storage Sensors_US_English
Storage Sensors_ATEX_English
Storage Sensors_ATEX_German
