The ordering information below is for FM and FMC approved units. For International ATEX and SIL approved models, see: Storage Tank Sensors_60635_RevE_ATEX.pdf

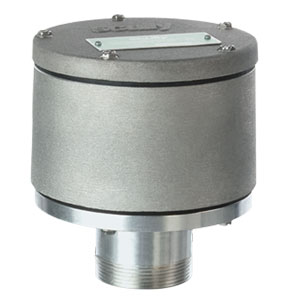

Holder with Single Sensor
| Part Number | Description | Low Temp | High Temp |
|---|---|---|---|
| 07510 | SP-O Thermistor Sensor with single holder | 07997 | 07544 |
Holders
| Part Number | Description |
|---|---|
| 09145 | SP-O Single Sensor Mounting Holder |
| Temperature Range: |
Standard; 0º to +140ºF (-18º to +60ºC) Low; -40º to +122ºF (-40º to +50ºC) High; 0º to +200ºF (-18º to +93ºC) |
| Product Range: | Gasoline through #6 oil, and most low viscosity petro-chemical liquids |
| Size: | Refer to diagrams |
| Response Time: | 0.5 second maximum, refer to the controller specifications |
| Exposed Materials: | — |
| Holders: | Aluminum housings |
