Tuning 200968ANSI 150球阀
发表时间：2021-09-04 来源： 点击次数：1357次
TUNING

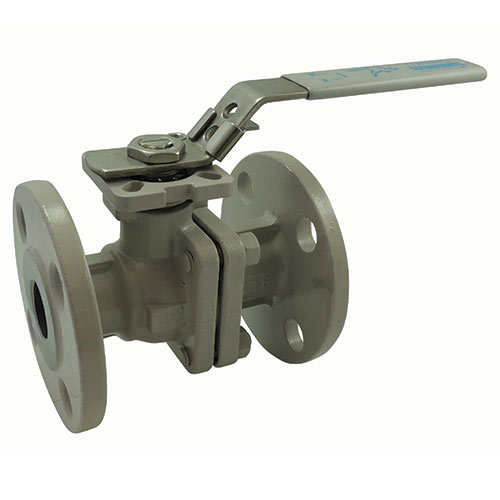

200968 ANSI 150 - ANSI 150 A216 WCB SPLIT-BODY BALL VALVE
2 way full bore ball valve with DIRECT ISO5211 PAD and DIN 3337 Stem
- Body A216WCB - Ball and stem in stainless steel AISI304
- TF1600 seats
- FKM o-ring
- ANSI B16.10 SPLIT
-BODY type
- Flanged ANSI 150
- Temperature
- 29 °C / + 175 °C
- On-Off operation via manual handle with locking device.
NOTE: The valve is certified Fire Safe according to API607 5th Ed and ATEX Eex II2 G/D CT3
华滋智能是Tuning valves 公司在亚太区的行业战略合作伙伴.
