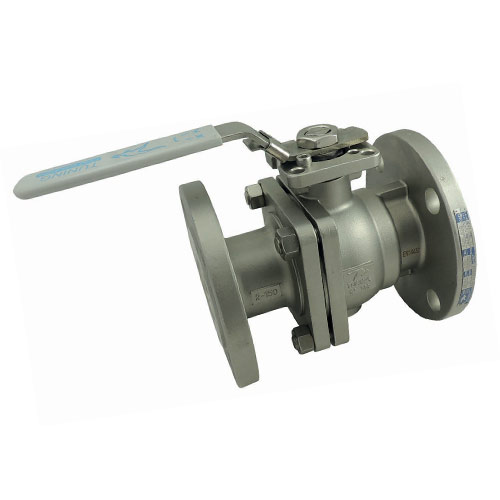

200965 ANSI 150 - ANSI 150 SPLIT-BODY STAINLESS STEEL 316 BALL VALVE
2 way full bore ball valve with DIRECT ISO5211 PAD and DIN 3337 Stem
- Body, ball and stem in stainless steel AISI316
- TF1600 seats
- FKM o-ring
- ANSI B16.10 SPLIT
-BODY type
- Flanged ANSI 150
- Temperature - 29 °C / + 175 °C
- On-Off operation via manual handle with locking device.
NOTE: The valve is certified Fire Safe according to API607 5th Ed and ATEX Eex II2 G/D CT3
