ABOUT US AT FLUIDVALVES LIMITED
Established in January 2012 designing and manufacturing float operated FLOAT VALVES for diesel, coolant, light oils and non-aggressive chemicals . Our market sectors include:- Marine, Mining, Quarry and Railway. Applications:- Diesel driven Fire Pump and Power generators. Mines and quarry storage and refueling. Railway refueling. Investment in FLUIDVALVES Limited is on-going with the acquisition of SOLIDWORKS professional design package, materials tractability system, new testing and in-house certification facilities. To add to FLUIDVALVES professional approach we are currently working towards ISO certification. FLUIDVALVES continue to maintain our customers exacting high standards by the development of new and innovative products for the Oil, Fuel and Fluid level control needs of the Industry. We are a company who care about our local and international customers’ needs with equal attention to detail and service.
关于我们-fluidvalves有限公司
Fluidvalves成立于2012年1月，设计和制造用于柴油、冷却液、轻质油和非腐蚀性化学品的浮控浮阀。我们的市场包括：海洋，采矿，采石场和铁路。用途：柴油驱动消防泵和发电机，矿山和采石场的储存和加油，铁路加油。对fluidvalves有限公司的投资正在进行，收购solidworks专业设计包、材料可牵引性系统、新的测试和内部认证设施。为了增加浮阀的专业方法，我们目前正在努力争取ISO认证。fluidvalves继续保持我们的高标准，通过开发新的和创新的产品，满足石油，燃料和液位控制行业的需要。我们是一家关注本地和国际客户需求的公司，同时注重细节和服务。

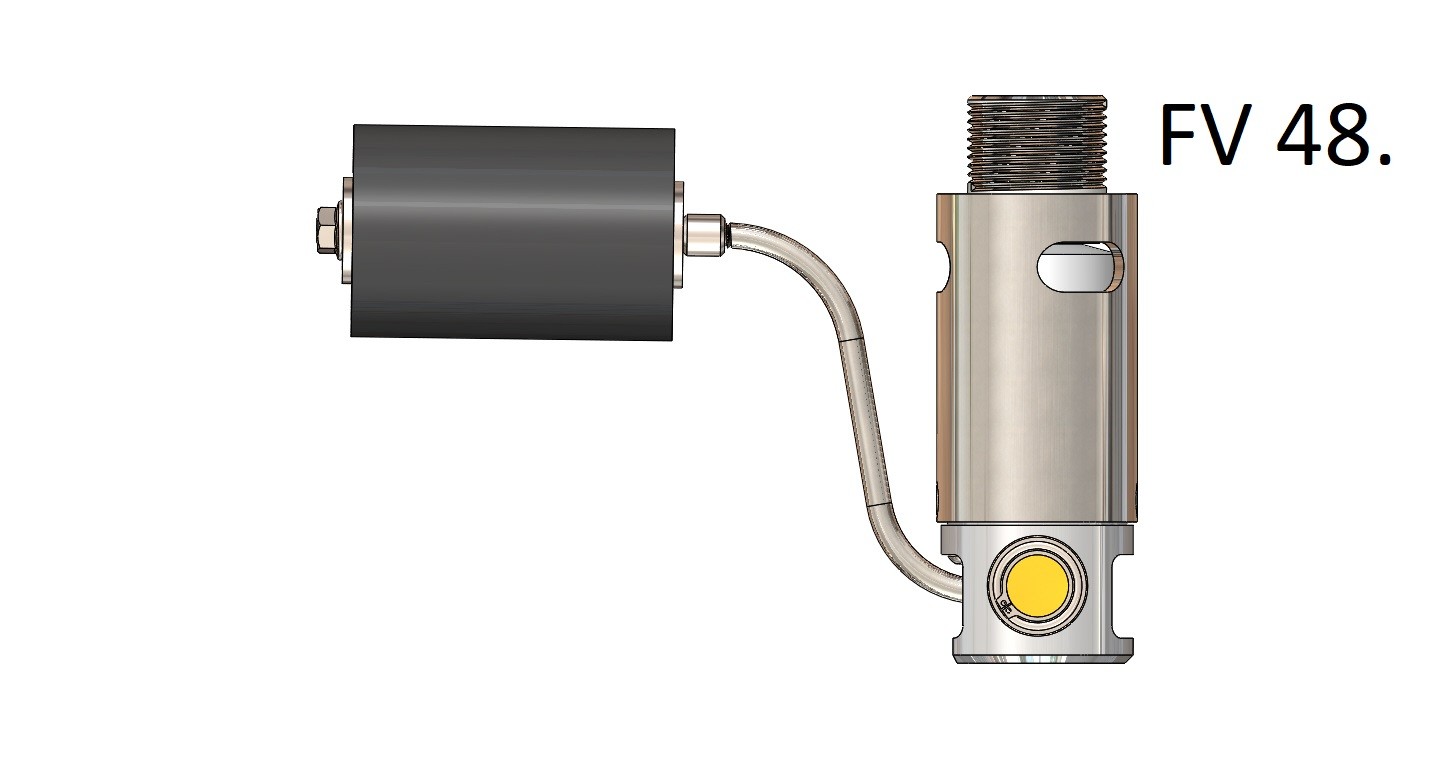

FV 48
Application:Diesel and Light Oils
Inlet:1" BSPP
Tank Ullage:Pre Set
Orientation:Vertical
Materials:Brochure FV 48
Performance
Operating Range Pressure 0.3 to 5 Bar, flow up top 60 l/min Weight 0.85kg Maximum Diametre 50.3 millimetres, can be installed through a 2" NPT or BSP socket

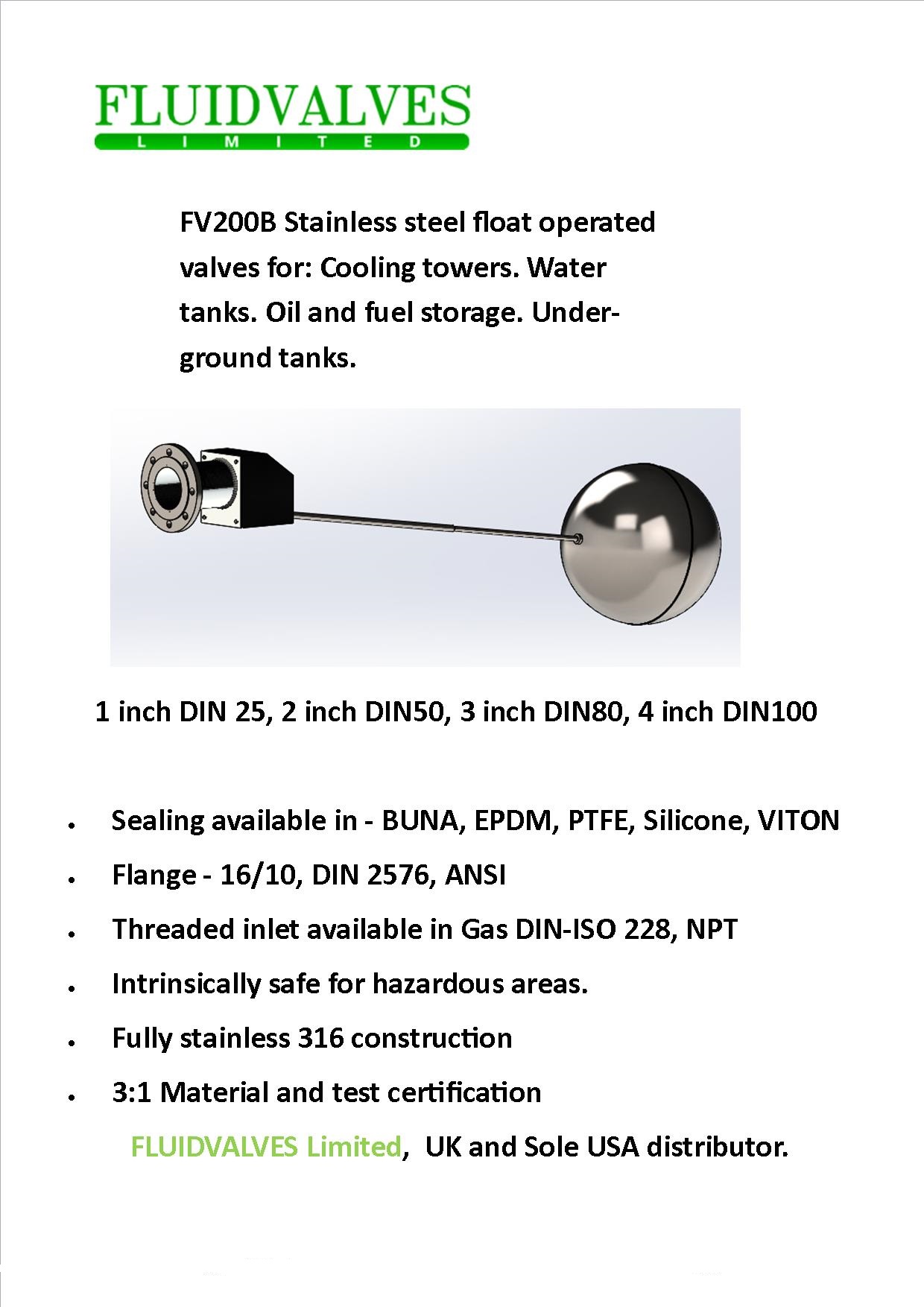

FV200B DIN 25 to 100 stainless steel float valves
Application:Water drinking and raw, Diesel, Light Oils and Coolant
Inlet:1 to 4 inches flanged or threaded BSPP(G)/NPT
Tank Ullage:Pre-set
Orientation:Horizontal
Materials:Stainless steel 316 construction Seals available in - Silicone, VITON, EPDM, BUNA, PTFE other available on request
Performance
Zero leakage when closed. Up to 4500LPM for 4" valve Full open port Operating pressures - up to 10BAR 4inchDIN100
FV200 side enrty float valves
Application:Water drinking and raw, Diesel, Light Oils and Coolant
Inlet:3/8 to 4" flanged or threaded
Tank Ullage:Adjustable
Orientation:Horizontal
Materials:316 stainless steel. Sealing material to suit application.
Performance
FV200 Data Sheet FV200 Larger Sizes Data Sheet Operating flow range 0 to 1200 LPM dependant on size and inlet pressure. Operating pressure range 0 to 10 Bar
FV200EV Top entry 3/8 to 2.1/2″ inlet
Application:Water drinking and raw, Diesel, Light Oils and Coolant
Inlet:3/8 to 2.1/2" inlet BSPP or NPT
Tank Ullage:Preset
Orientation:Vertical inlet
Materials:Stainless steel 316, sealing material to suit application
Performance
FV200EV Data Sheet Operating flow rate 0 to 1200 LPM dependant on flow rate and inlet pressures. Operating pressure range 0 to 10 Bar

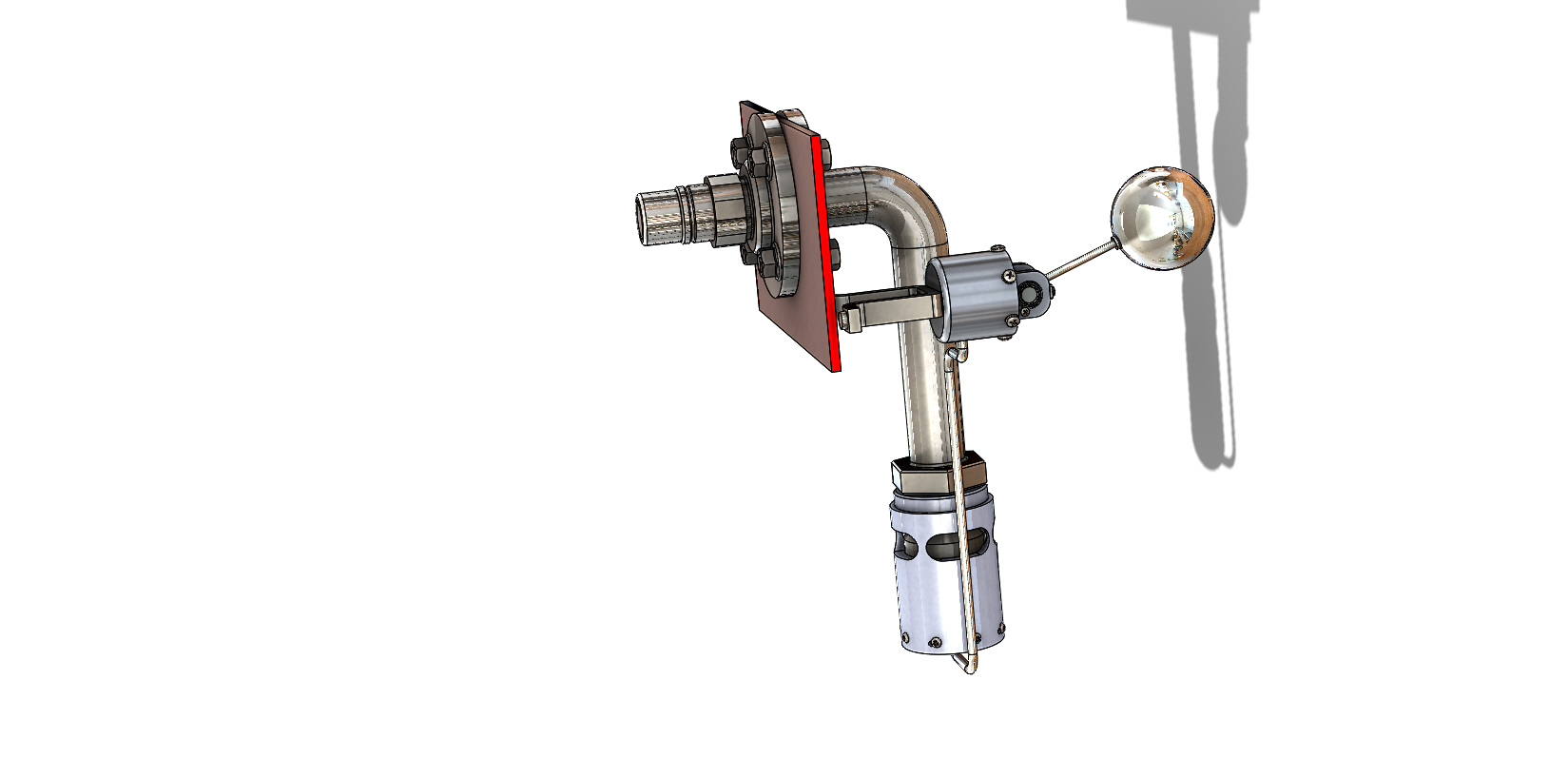

FV80 – PV80 2″ Mining fast fill system
Application:Fuel and Light Oils
Inlet:2" and 6mm Pilot Line
Tank Ullage:Factory Preset
Orientation:Internal drop tube mounting.
Materials:Stainless 316. PTFE,Viton.
Performance:FV80 fast fill Click to view PDF
Full flow to soft shut down. Bottom fill eliminates foaming and reduces turbulence.
