Tankgauges Magnetostrictive Probe is used for measuring product level and it provides high precision. The probe has advantages such as steadiness,reliability,long-life,finished frame and strong adaptability. It can be installed at the top of tanks and the tank doesn’t need to be cleaned. So it also has advantages such as safety, convenience and fast installation.
采用磁致伸缩探头测量产品液位，精度高。该探头具有稳定性好、可靠性高、寿命长、框架成品、适应性强等优点。它可以安装在油箱顶部，不需要清洗水箱。具有安全、方便、安装快捷等优点。
The flexible magnetostrictive probe for Tall Tanks
高塔罐用柔性磁致伸缩探头
Simple & Cost-Effective Installation
安装简单且成本效益高

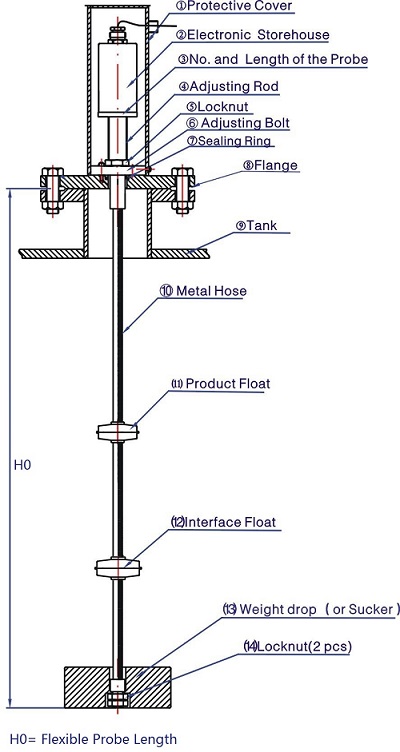

传感器波纹软管由一个砝码和一个磁铁拉伸。
Tried & Tested尝试和测试
High accuracy tank level measurement.高精度油罐液位测量。
Flexible Magnetostrictive Probe Parameters:
柔性磁致伸缩探头参数：
Measuring range:0.3~25m
测量范围：0.3~25米
Measuring precision:±1mm
测量精度：±1mm
Resolution:0.1mm
分辨率：0.1毫米
Temperature measuring number:5
测温编号：5
Temperature measuring range:-40~125°C
温度测量范围：-40~125°C
Temperature measuring precision:±0.5°C
温度测量精度：±0.5°C
Temperature measuring resolution:0.0625°C
温度测量分辨率：0.0625°C
Working temperature:-40~85°C
工作温度：-40~85°C
Medium density range:0.4~2.5g/cm3
中密度范围：0.4~2.5g/cm3
Working pressure:0.05~10MPa
工作压力：0.05~10MPa
Protective Grade Explosion-proof label:IP67/Exia II CT6
防护等级防爆标签：IP67/Exia II CT6
Technics interface:G3/4" or M20×1.5
工艺接口：G3/4“或M20×1.5
Electric interface:G1/2" or M20×1.5
电气接口：G1/2“或M20×1.5
Working voltage:DC12~24V
工作电压：DC12~24V
Working current:40mA
工作电流：40Ma
Communication protocol: Modbus RS485 or 4-20mA
通信协议：MODBUS RS485或4-20MA
Material of the probe Rod and floater:316L
探杆、浮子材质：316L

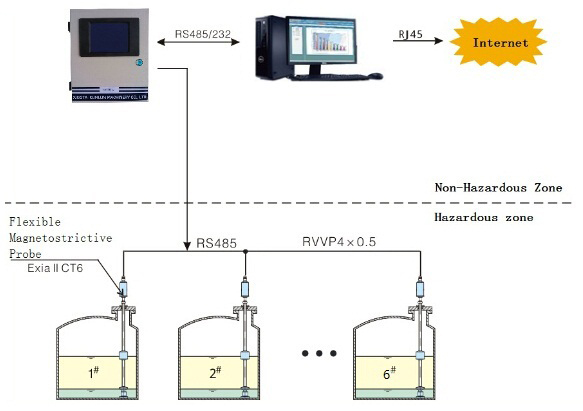

Flexible Magnetostrictive Probe For Tall Tanks Solution:
高罐溶液用柔性磁致伸缩探头：

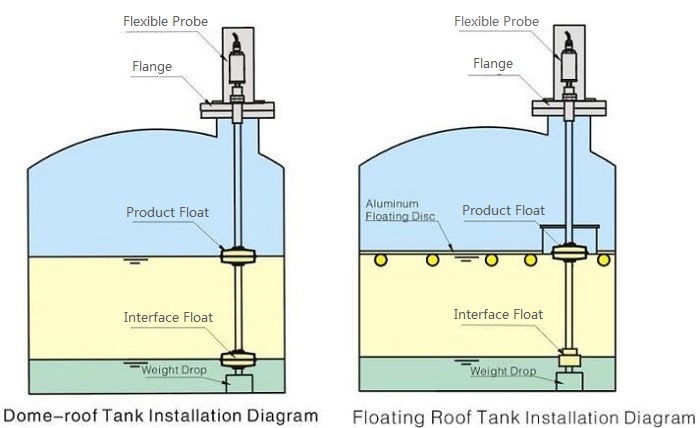

The Probe Installation diagram in the two kinds of tank :
两种罐内探头安装示意图：
