Technical Parameters:
技术参数：

1. Measuring range:0.3~4m（can customize according to user’s request）
2. 测量范围：0.3~4米（可根据用户要求定制）

3. Safety Barrier input voltage: DC12V/40mA
4. 安全栅输入电压：DC12V/40MA

5. Communication protocol: Modbus RS485 Baud rate:2400BPS
6. 通讯协议：Modbus RS485波特率：2400bps

7. Transfer distance: 1200m
8. 传输距离：1200米

9. Measuring accuracy:+/-1mm
10. 测量精度：+/-1mm
11. Repetition: 0.3mm
12. 重复度：0.3mm
13. Resolution:  0.1mm
14. 分辨率：0.1毫米

15. Temperature measuring number: 1 ~ 5
16. 测温编号：1~5

17. Temperature measuring range:-40°C ~ 125°C
18. 温度测量范围：-40°C~125°C

19. Temperature Precision:±0.5°C
20. 温度精度：±0.5°C

21. Temperature Resolution:0.0625°C
22. 温度分辨率：0.0625°C

23. Protective Grade/Explosion-proof label: IP67/Exia II CT6
24. 防护等级/防爆标签：IP67/Exia II CT6

25. Nominal working pressure: 0~0.6MPa,0~1.6MPa,0~2.5MPa
26. 额定工作压力：0~0.6Mpa，0~1.6Mpa，0~2.5Mpa

27. Working medium density:0.4~1.3g/cm3
28. 工作介质密度：0.4~1.3g/cm3
29. The material of the probe and the Electronic Storehouse: 316L stainless steel probe
30. 探头及电子库房材质：316L不锈钢探头
31. The probe is used for exactly measuring tanks and it had been applied in the fields of gas station, chemical industry, foodstuff and pharmacy.

该探头用于储罐的精确测量，已应用于加油站、化工、食品、制药等行业。

Applied liquid products 应用液体产品

1. Gasoline汽油
2. Diesel 柴油机
3. Kerosene煤油
4. Ethanol Gasoline乙醇汽油
5. Bio Diesel生物柴油
6. Water水
7. Other approved light oil products其他核准轻油产品

1. Product level产品液位
2. Water level水位
3. Temperature温度
4. Product inventory产品库存
5. Empty capacity (Order capacity)空容量（订单容量）

1. 1.Transfer probe data to console in real time, including product level, water level,temperature。
2. 实时将探头数据传输到控制台，包括产品液位、水位、温度。

3. 2.5 points temperature sensors offer precision measurement as the basis of temperature compensation and leak detection.
4. 5点温度传感器提供精确测量，作为温度补偿和泄漏检测的基础。

5. 3.Digital signal transmit have remarkable highlights than traditional analog signals,especially on high anti-interruption ability, enhance long distance communication as 500m, and higher security.
6. 数字信号传输比传统的模拟信号具有突出的特点，特别是抗干扰能力强、远程通信能力高达500m、安全性高。

7. 4.Leak detection ability support 0.38Liter/Hour, and 0.76Liter/Hour, static and dynamic leak detection connects with console. This programmable Leak Detection can be set detect by daily,weekly, monthly or annually.

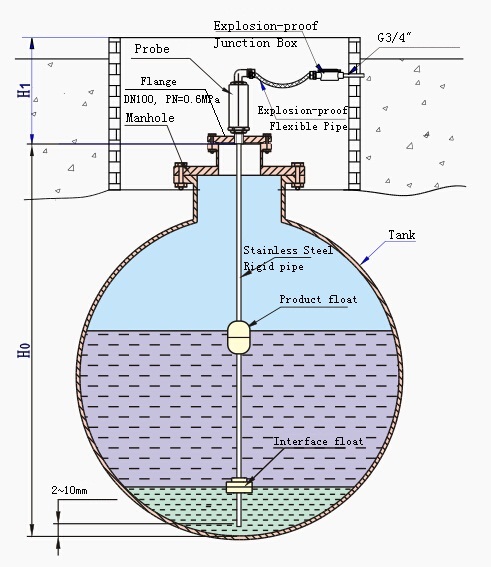

The probe length means the length from the bottom to the top under the electronic part, please see the graph as follows:

探头长度是指电子部分底部到罐底的长度，见下图：
