Product Brand: Phönix

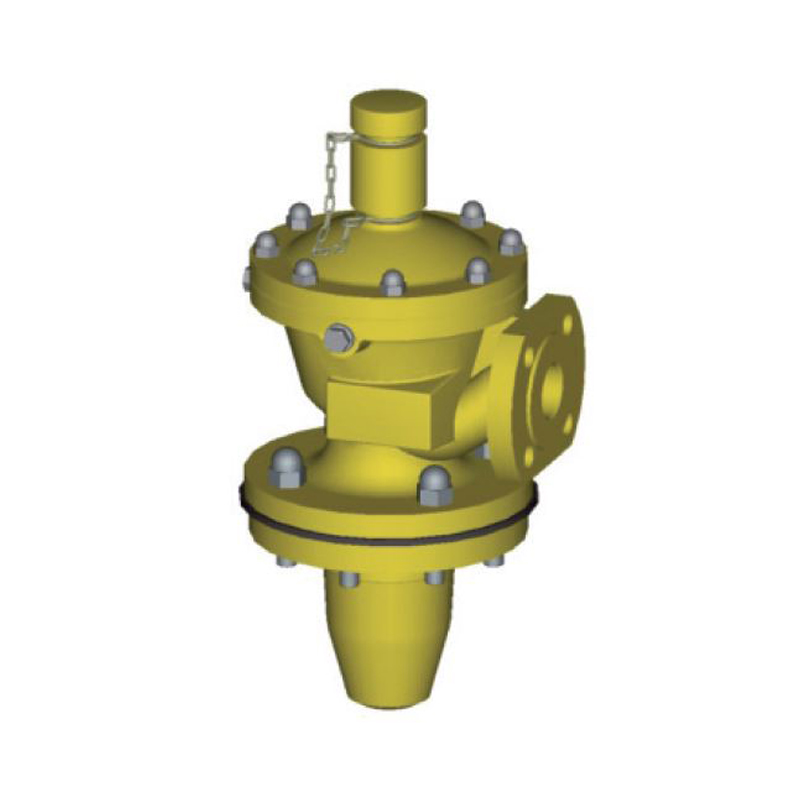

Tanker valve (POV) combination of a pneumatically operated quickclosing valve with bellows and a spring-loaded ball check valve
Supplied as Angle pattern type
Applications Description
Accredited to DIN 26028, CEFIC UN 14, GGV Annex XI with ref. for railway tankers, ISO-Container (309.50) and trucks top loading for extremly dangerous media, e.g. chlorine, hydrofluoridric
| Specifications: | |
|---|---|
| PN | 25 |
| DN | 40 |
| Class | 150 |
| NPS | 1 - 1/2 |
| Temperature Rating | -50°C up to +70°C |
| Shell Materials |
Low temperature carbon steel Stainless steel Other special alloys> |
| Connections |
Flanged ends other connections as required |
| Operation | Pneumatic diaphragm actuator |
| Approvals |
Prototype 06D2 BAM approved Euro Chlor approval 96/01; 96/02; 96/03; 96/07 EG 2010/35 (TPED) Prototype testes DIN EN 14432 |
