Rochester 8944-04 Series
发表时间:2020-04-08 来源: 点击次数:1113次

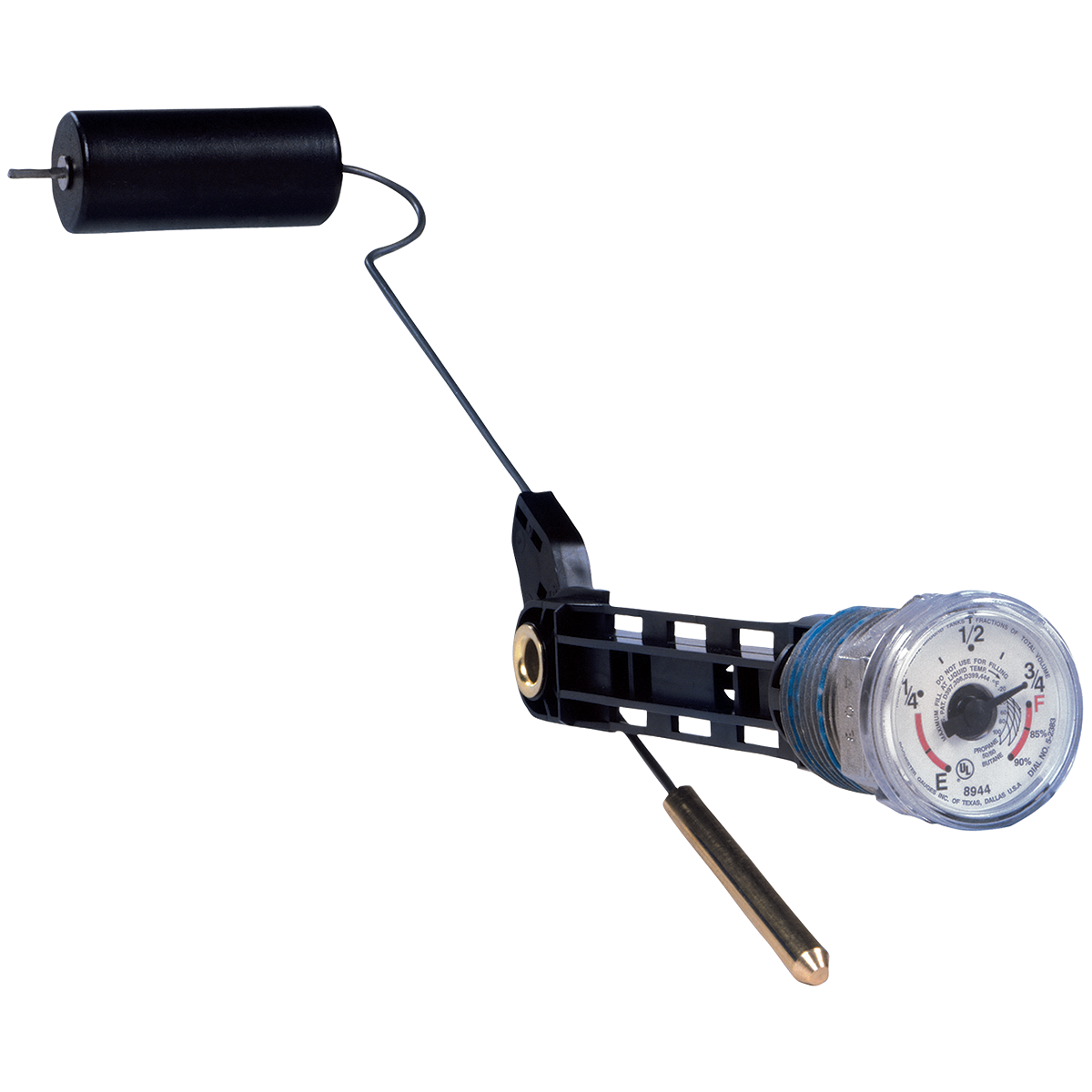

8944-04 Series

1” NPT GAUGE FOR MOTOR FUEL APPLICATIONS



Application
The 1″ Male NPTF Junior® gauge is designed for use on 10” through 22” ASME horizontal cylinders for Motor Fuel and RV fuel tanks. This gauge measures the liquid contents of a horizontally mounted tank.

General Information & Features
The gauge head accepts a snap-on Junior dial.
The gauge support, center shaft and float arm are constructed of a propane compatible thermoplastic polymer material. This construction reduces the number of parts and improves reliability and accuracy.

Centerline mounting only.

Additional Information


General Specifications*

Temperature
Standard range is -40°F to 158°F, -40°C to 70°C.

Vibration
Mobile service applications.

Shock
Mobile service applications.

Working Pressure
375 psi. [25,5 Bar].

Approvals
UL listed for LP Gas automotive accessory.

U.S. Patents
6,041,650; 6,089,086

Materials of Construction*M

Head
Zinc die casting.

Support, Centershaft, Pivot Arm, & Gears
Thermoplastic polymer.

Float
Nitrile rubber.

Magnet
Neo.

Direct Reading Dials
Ultrasonicaly welded, hermetically sealed polycarbonate.

*Materials and specifications are subject to change without notice. Pressure ratings subject to change due to temperature and other environmental considerations.

Revised 02-27-2018
