Application

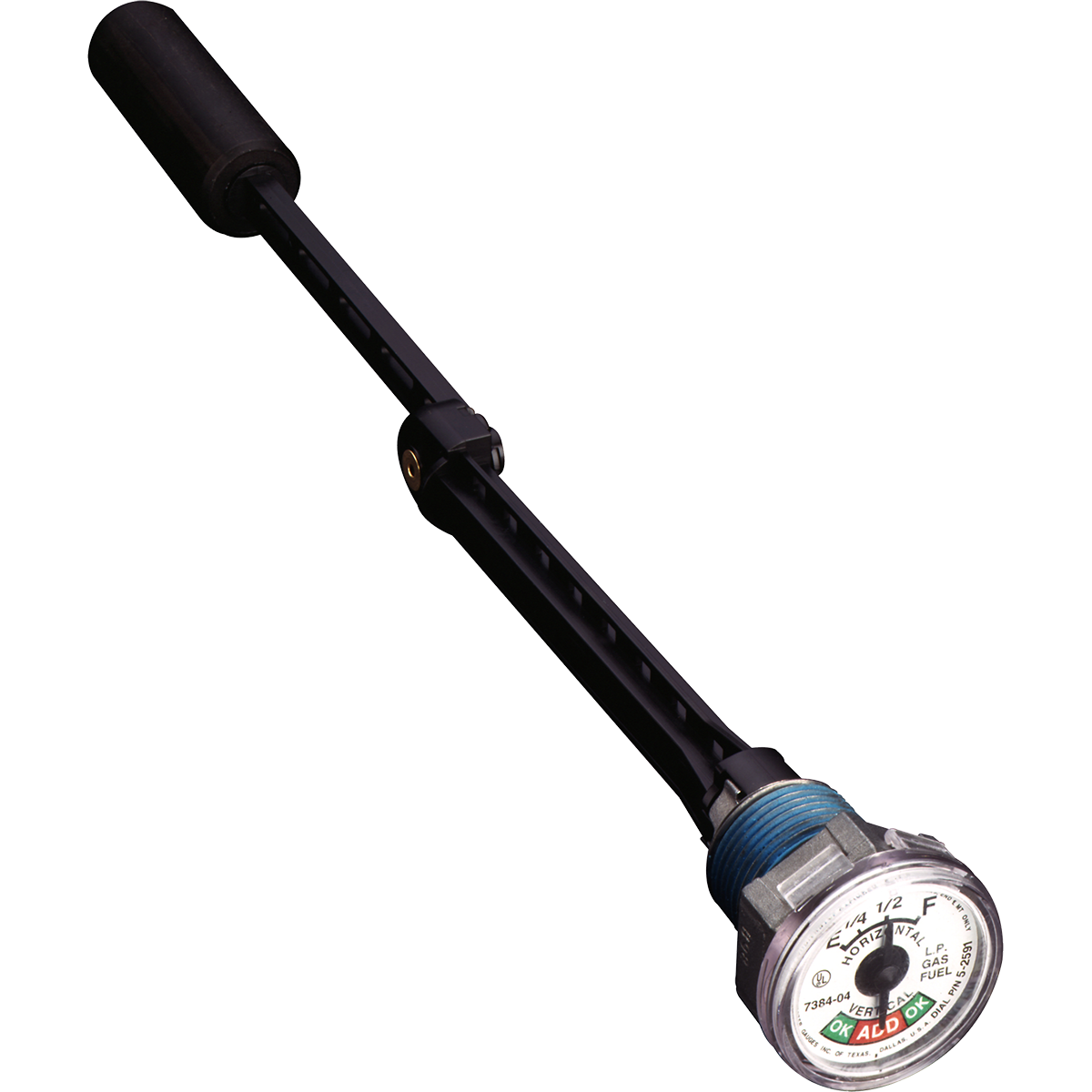

The new 3⁄4″ Male NPTF gauge is designed for use in all 20#, 33.5#, and 43.5# DOT lift truck cylinders. This gauge measures the liquid contents of a horizontally mounted lift truck cylinder. The gauge has a second scale for use when the tank is stored vertically which reads “OK” or “ADD”.
General Information & Features
The gauge head accepts a snap-on Junior dial and has 1 3⁄8″ [35] hex wrenching flats.
The gauge support, center shaft and float arm are constructed of a propane compatible thermoplastic polymer material. This construction reduces the number of parts and improves reliability and accuracy.
Additional Information
Temperature Range
Standard range -40°F to 158°F, -40°C to 70°C.
Shock
Designed for lift truck & portable cylinder service applications.
Vibration
Designed for lift truck cylinder service applications.
Working Pressure
375 psig [25,8 Bar].
Approvals
UL Listed as LP Gas automotive accessory.
Copolymer
Dial is resistant to paint thinners and other solvents.
U.S. Patents
6041650, 6089086
Head
Zinc die casting.
Support, Centershaft, Float Arm, & Gears
Thermoplastic polymer.
Float
Nitrile rubber.
Magnet
Alnico.
Direct Reading Dial
Ultrasonically welded, hermetically sealed polycarbonate or copolymer.
*Materials and specifications are subject to change without notice. Pressure ratings subject to change due to temperature and other environmental considerations.
Revised 06-10-2016
