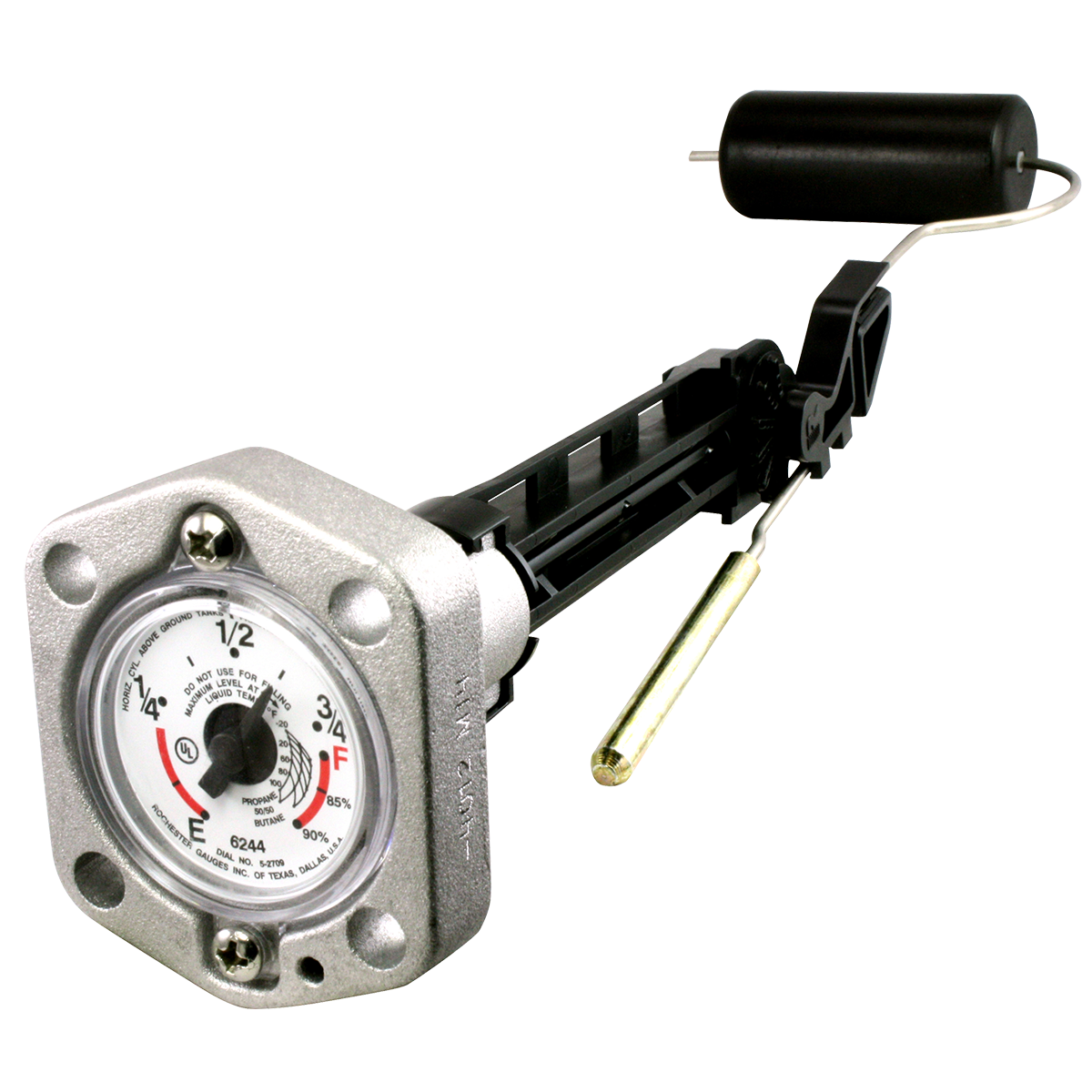

FOUR BOLT GAUGE FOR DOMESTIC TANKS
Application
The Junior gauge is designed for use on 10” through 22” ASME horizontal cylinders for Motor Fuel and RV fuel tanks. This gauge measures the liquid contents of a horizontally mounted tank.
General Information & Features
The gauge head accepts a Junior dial.
The gauge support, center shaft and float arm are constructed of a propane compatible thermoplastic polymer material. This construction reduces the number of parts and improves reliability and accuracy.
Centerline mounting only.
Additional Information
Temperature
Standard range is -40°F to 158°F, -40°C to 70°C with optional stainless steel mounting bolts which maybe required for temperatures below -20°F, -29°C.
Vibration
Mobile service applications.
Shock
Mobile service applications.
Working Pressure
375 psi. [25,5 Bar].
Approvals
UL listed for LP Gas automotive accessory.
U.S. Patents
6,041,650; 6,089,086
Head
Die cast aluminum.
Support, Centershaft, Float Arm, & Gears
Thermoplastic polymer.
Float
Nitrile rubber.
Magnet
Neo.
Direct Reading Dials
Ultrasonicaly welded, hermetically sealed polycarbonate.
Mounting Bolts
Zinc-plated steel. (Stainless steel optional.)
*Materials and specifications are subject to change without notice. Pressure ratings subject to change due to temperature and other environmental considerations.
Revised 05-22-2018
